- Safety Class: IP20 rating

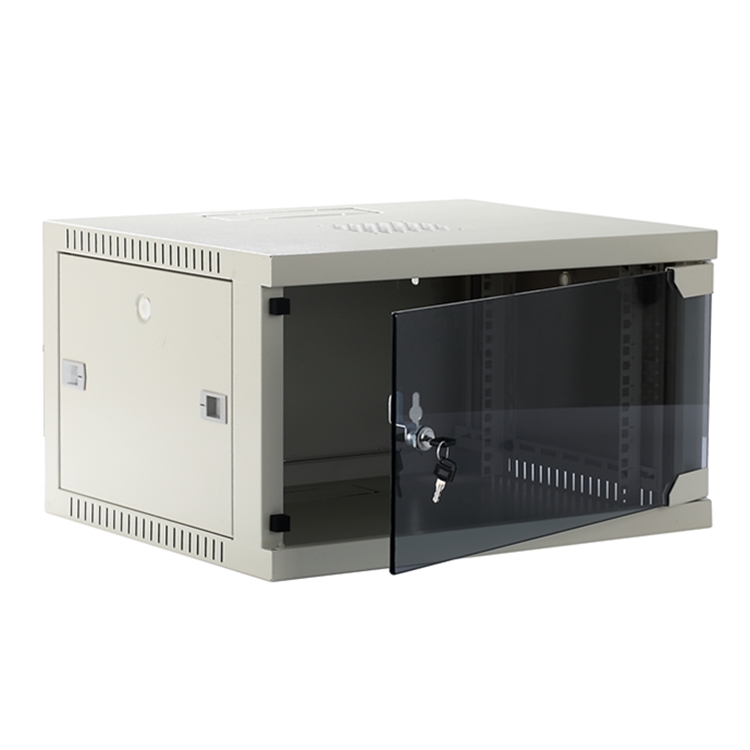

- Front door can be optional in 6 types
- Cable entry with metal covered at the top and bottom
- Quick-removable and mounting brush cable entry is optional
- L shaped brackets for wall cabinet can be optional
- Two or single fan holes at the top is available

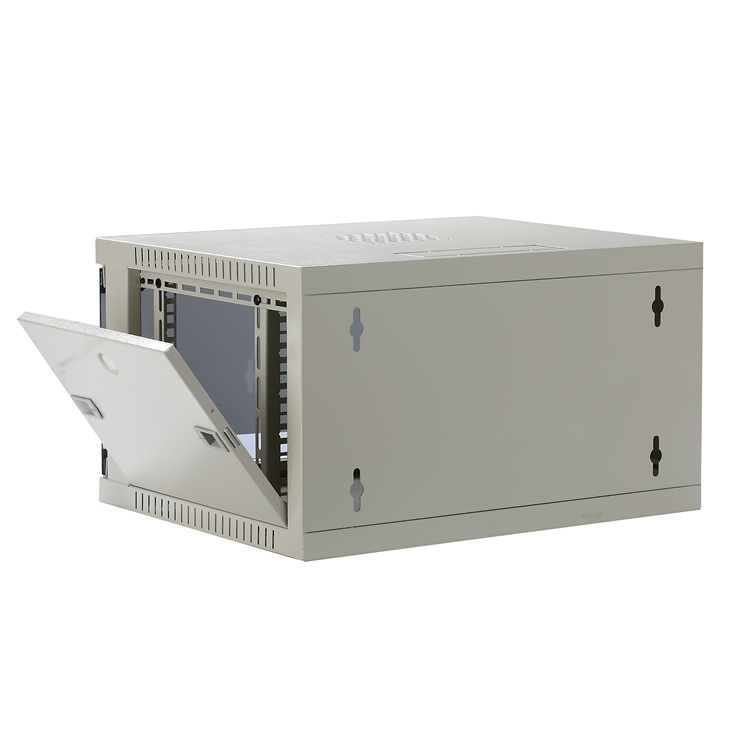

- Quick-release lockable side panels
- Metal round lock is optional
- Load capacity: 50KG
- 19” profile rails mounted in the front and back of the cabinet
- 19” profile rails adjust the depth
- 19” profile rails with “U” – making
- Color is in light grey RAL7035 or Black RAL9005
- Flat Packing(Knock down) for transportation

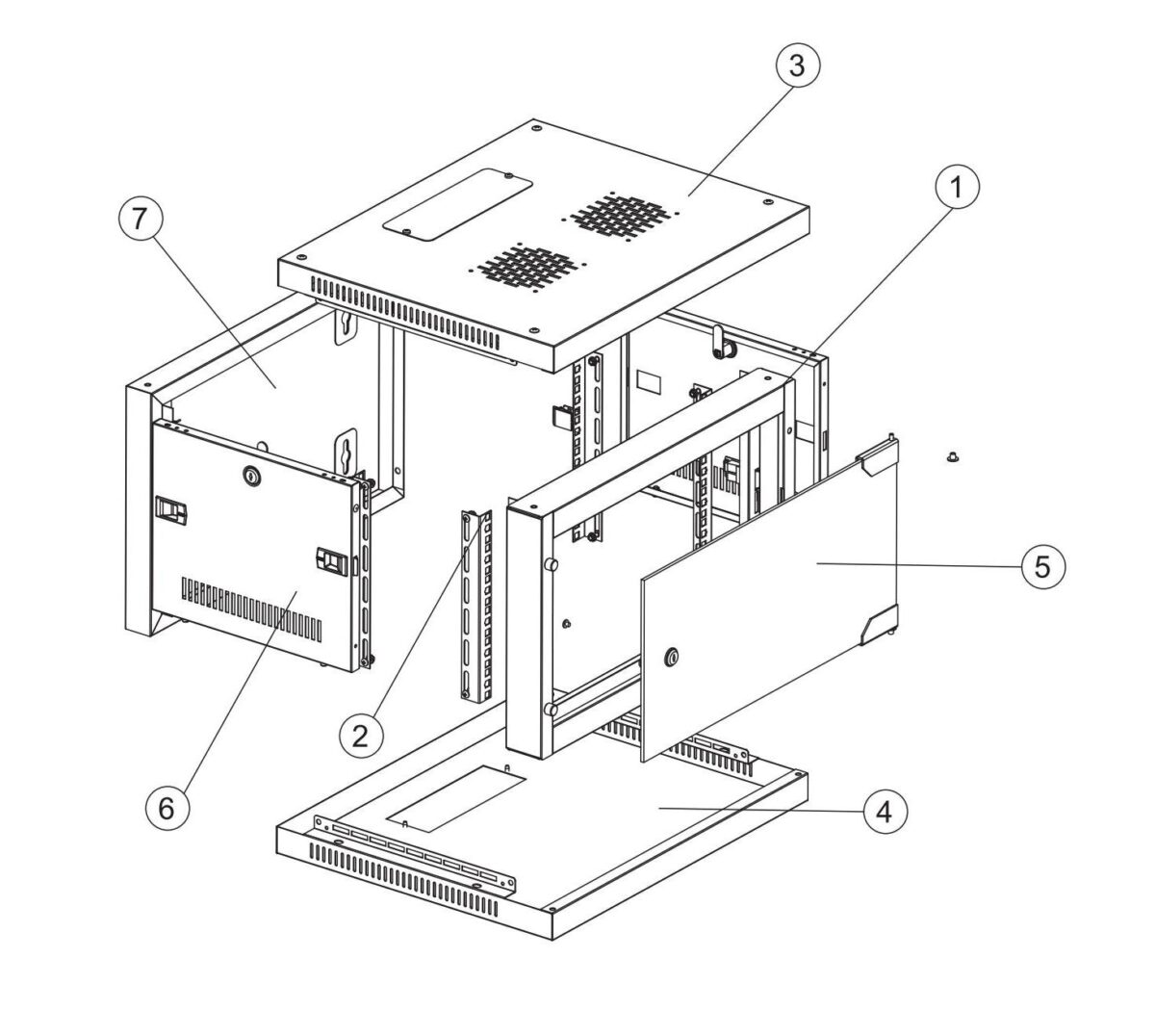

| S/N | Specification | Quantity |
| 1 | Frame | 1 |
| 2 | Vertical rail | 4 |
| 3 | Top cover | 1 |
| 4 | Bottom panel | 1 |
| 5 | Front door | 1 |
| 6 | Side panel | 2 |
| 7 | Rear panel | 1 |

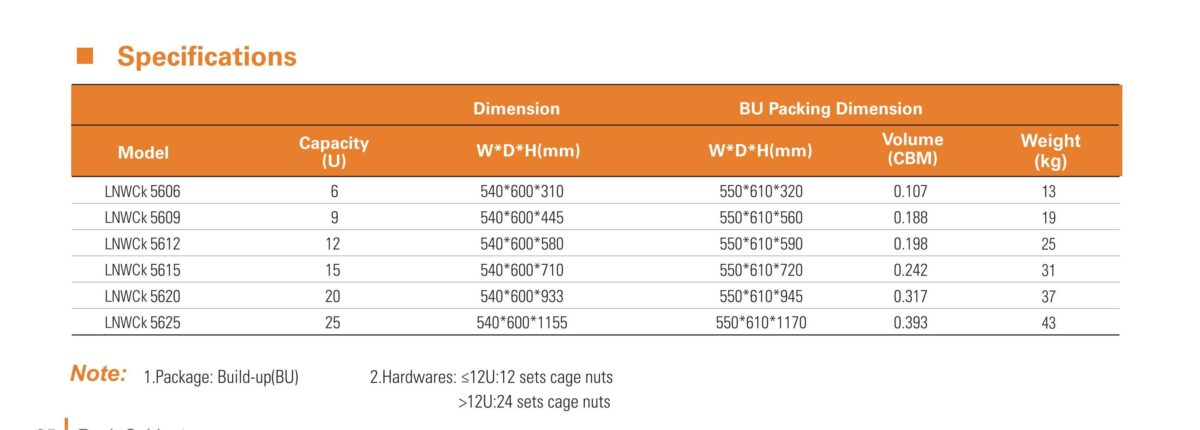

Width, Depth and Height could be optional
