Model:
JM-LNWORA
Simple economic design wall network rack for IT areas. Flat packing for transportation space saving
The wall network rack is a durable, economical frame for 19-inch EIA-standard equipment. It mounts to the wall, assembles in 5 minutes, and supports up to 80 kg. Made of heavy-duty steel with a black powder-coated finish, it features 470mm side cage nut holes and includes all necessary hardware.
Inquiry
Wall network rack is a simple economic design 5 minutes assembly and use. Side cage nuts holes installation distance is 470mm, is ideal for installing patch panels and other shallow networking equipment in secure IT areas with limited floor space. Mounted to the wall, this rack offers fast, easy access to network components and cabling. It’s compatible with EIA-Standard 19-inch rack equipment that supports two-post mounting and a mounting depth optional.

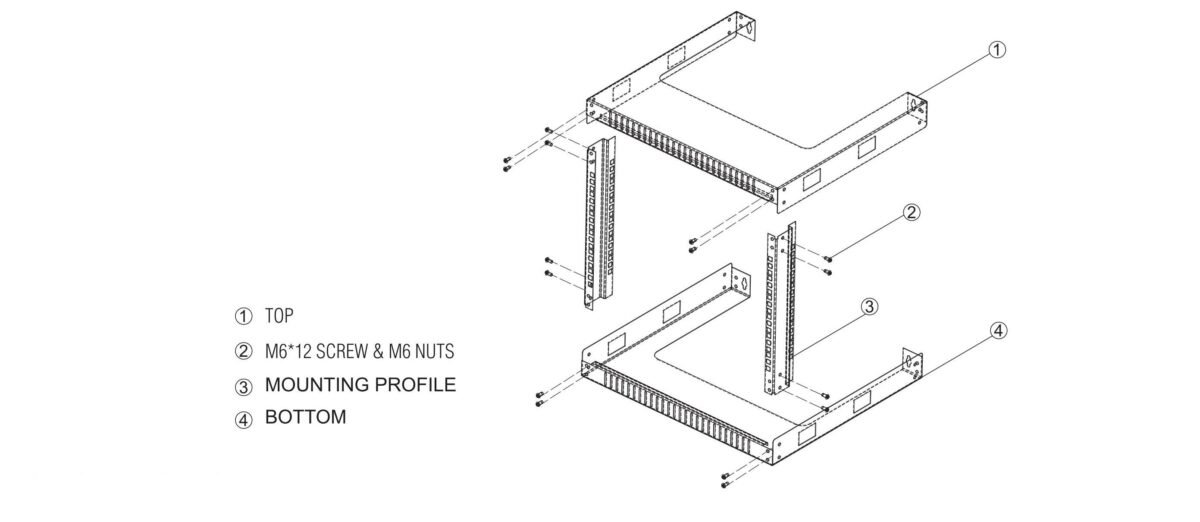

Constructed from heavy-duty steel in a durable black powder-coated finish, the open-frame rack has a maximum load capacity of 80KG. The rack is easy to assemble using the included hardware. The vertical mounting rails have threaded 12-24 holes or cage nuts holes for securing equipment to the steel frame
| Model | Capacity(U) | Depth(mm) | Dimension(W*H*D) | Flat Packing Size(L*W*H)mm | Packing Weight(KG) |
| LNWORA5404 | 4 | 450mm | 500*450*281 | 505*455*125 | 6 |
| LNWORA5406 | 6 | 450mm | 500*450*370 | 505*455*125 | 6.2 |
| LNWORA5409 | 9 | 450mm | 500*450*503 | 510*505*125 | 6.5 |
| LNWORA5412 | 12 | 450mm | 500*450*636 | 640*505*125 | 6.8 |
| LNWORA5415 | 15 | 450mm | 500*450*770 | 774*505*125 | 7.1 |
| LNWORA5418 | 18 | 450mm | 500*450*903 | 908*505*125 | 7.4 |
| LNWORA5422 | 22 | 450mm | 500*450*1081 | 1100*505*125 | 7.8 |
* Please contact us for more sizes.
