Model:
JM-LNFORA-4PORT
SmartRack open rack height can be 18U to 45U optional

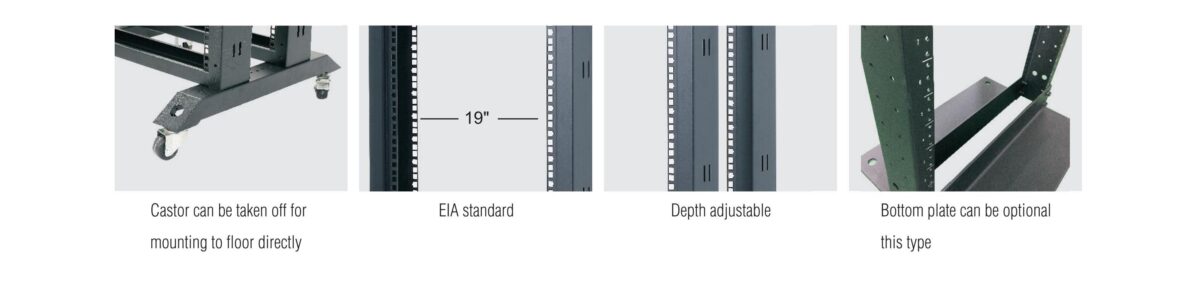

SmartRack open rack height can be 18U to 45U optional. Assembly is easy with Manual instruction, packing is flat packing. Castors can be optional, and can be installed into the floor directly after removing the castors.
Inquiry
SmartRack Open Frame Rack is an economical way to accommodate up to45U of rack space for 19-inch rackmount applications in limited spaces. Its heavy-duty,Cold-rolled steel construction can safely support 800KG ofrackmount equipment. The black RAL9005 powder coat finish makes itresistant to scratching. The LNFORA is easy to installdue to a self-squaring design combined with optional 12-24/10-32 threaded or Cage nuts holes andnumbered mounting positions along with bolt down provisions. Only standardhand tools are required. Multiple units canbe bolted together side by sidefor easy expansion orcustomization as needed.
| Model | Capacity(U) | Dimension(W*H*D) | KD Packing Dimension(W*D*Hmm) | |
| (W*D*H)mm | Volume(CBM) | |||
| LNOR-4post-6622 | 22 | 600*600*1187 | 615*250*1130 | 0.174 |
| LNOR-4post-6632 | 32 | 600*600*1631 | 615*250*1575 | 0.242 |
| LNOR-4post-6637 | 37 | 600*600*1854 | 615*250*1795 | 0.276 |
| LNOR-4post-6642 | 42 | 600*600*2076 | 615*250*2020 | 0.311 |
| LNOR-4post-6647 | 47 | 600*600*2298 | 615*250*2240 | 0.344 |
Note: Hardware: 20 sets cage nuts.
* Please contact us for more sizes.
