Server Rack Enclosure, 42U, Black,2055H X 600W X 800D

Model:

LNS

Server Rack Enclosure, 42U, Black,2055H X 600W X 800D

4-post server rack, constructed from Cold Rolled Steel with a black powder coat.
Highly adaptable for various server sizes, providing flexibility to handle full-size servers.
Offers adjustable depth for versatile server and network equipment accommodation
Included casters, two with brakes, offer the ease of mobility for this network rack.
This 42U data rack promotes efficient airflow, essential for maintaining optimal performance of server and network hardware.
The rack’s design, with square hole cage nut mounting, simplifies installation and maintenance tasks in IT and networking areas.
ETL, CE, ROHS, 3C certificates approved.

Safety class IP 20 rating
Front door and rear doors optional in 12 types
Plastic quick release lockable Side panels, round metal lock can be optional.
120° opening door angle, front and rear door
Door stop easy to change from left to right
High frame rigidity due to raw material steel famous brand and production technique
1000kg loading capacity
19″ profile rails mounted in the front and the back of the cabinet
19″ profile rails adjustable in depth
19″ profile rails with unit-marking
Cable management channels horizontal or vertical optional

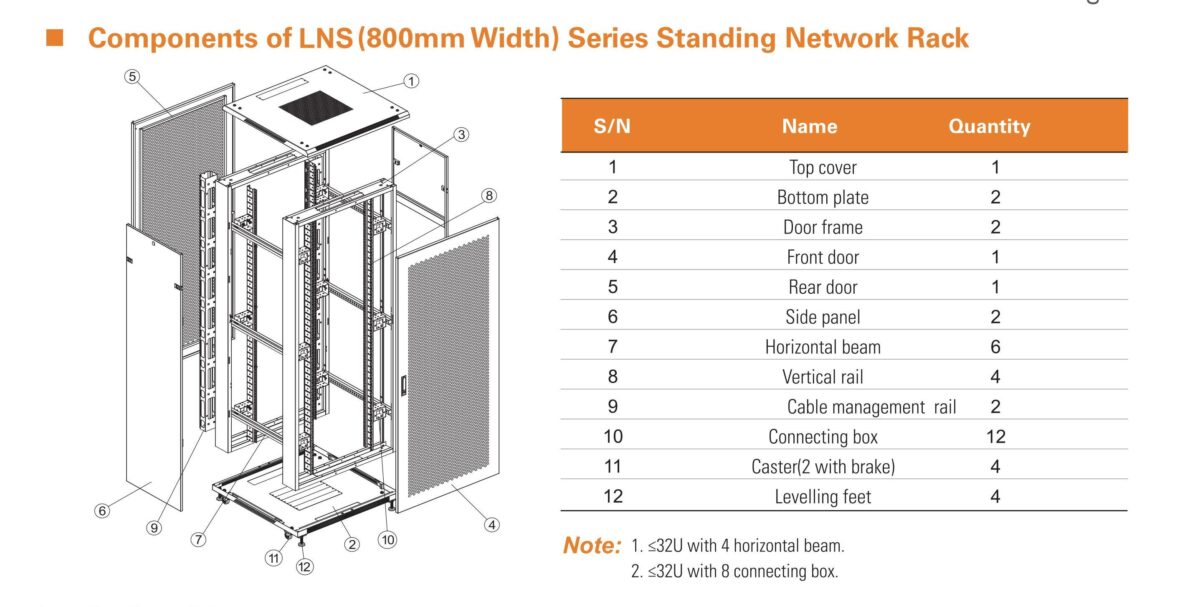

800mm wide LNS rack default include 2*vertical cable managers
Big cable entry with black cellular on the top and bottom
Brush cable entry at anywhere of the cabinet can be optional
Heavy-duty castors, level feet & 25 sets cage nuts are included at any situation
Color by RAL7035 light grey, RAL9005 black

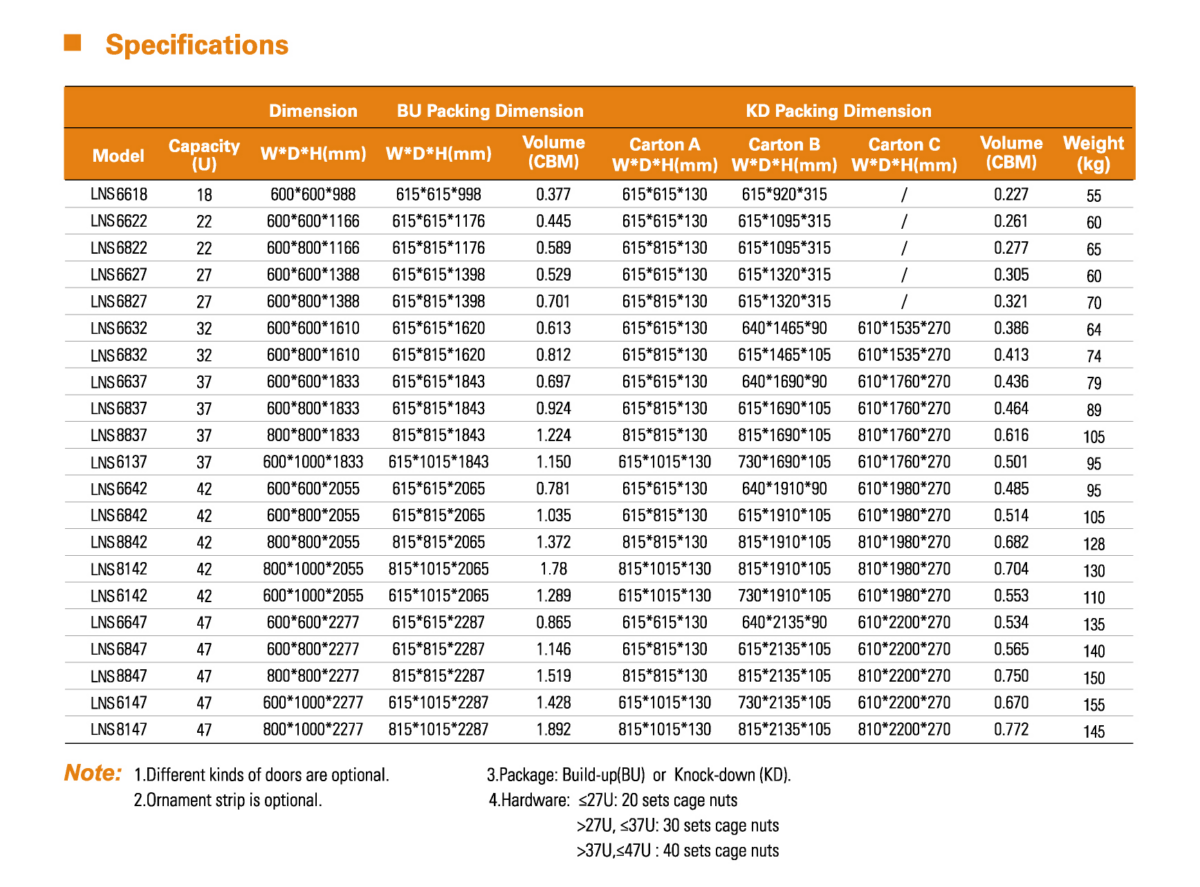

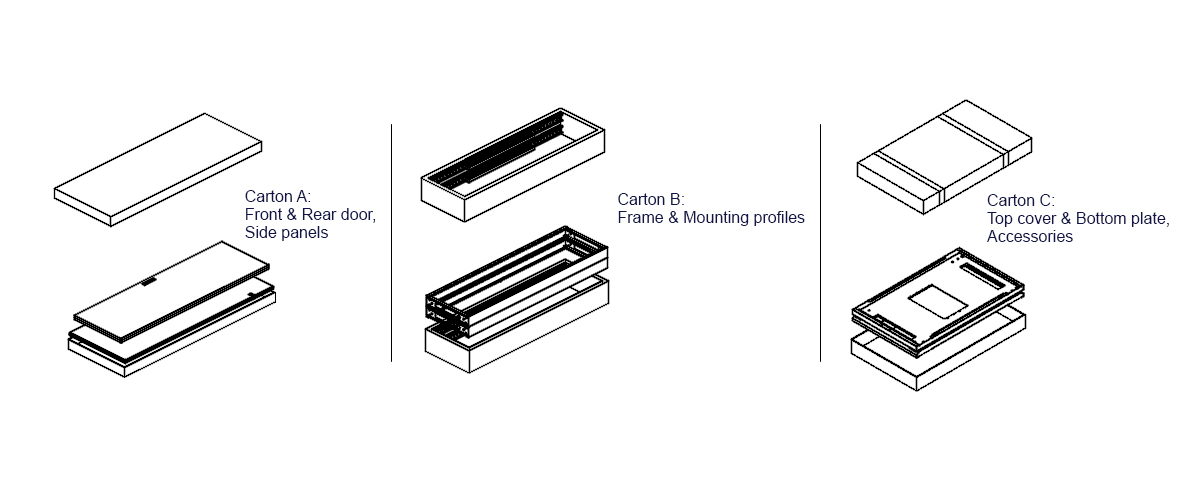

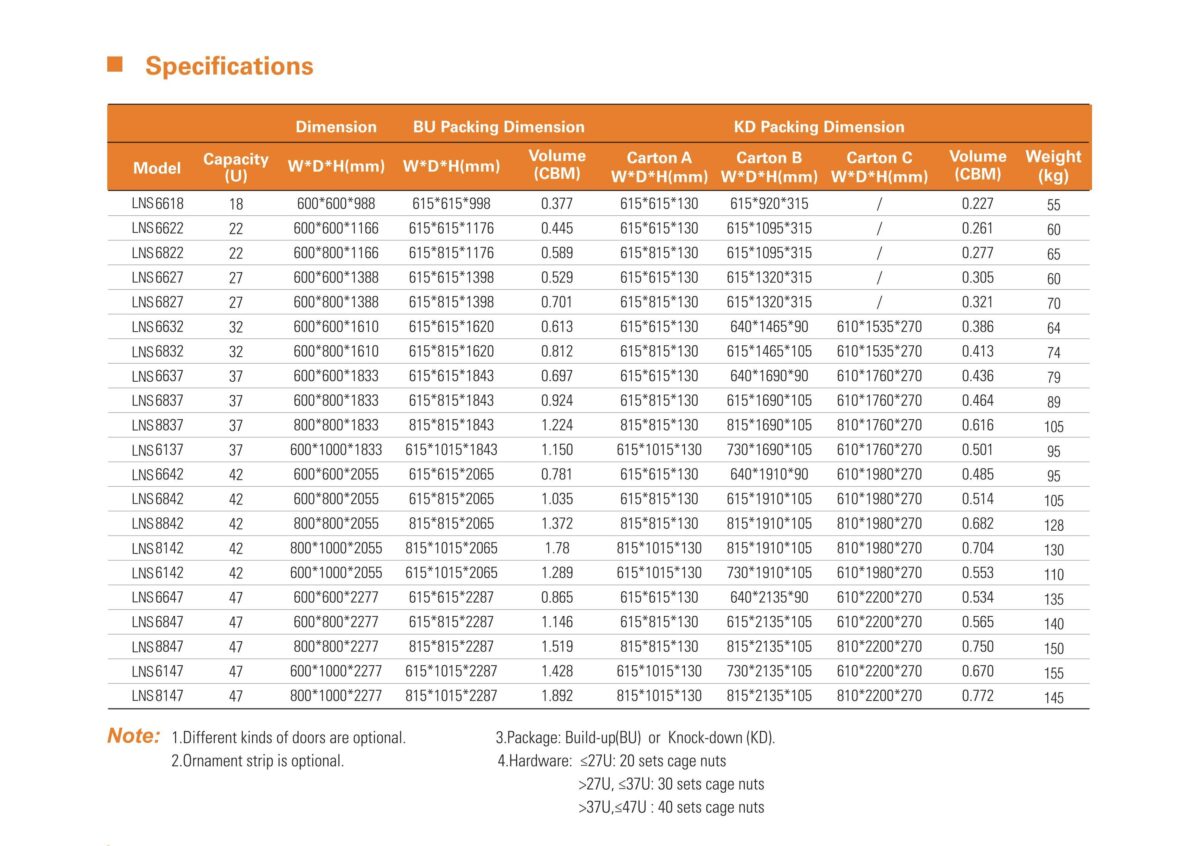

Model	Capacity (U)	Dimension WDH(mm)	BU Packing Dimension WDH(mm)	Volume (CBM)	KD Packing Dimension-Carton A WDH(mm)	KD Packing Dimension-Carton B WDH(mm)	KD Packing Dimension-Carton C WDH(mm)	KD Volume (CBM)	Weight (kg)
LNS6618	18	600600988	615615998	0.377	615615130	615920315	/	0.227	55
LNS6622	22	6006001166	6156151176	0.445	615615130	6151095315	/	0.261	60
LNS6822	22	6008001166	6158151176	0.589	615815130	6151095315	/	0.277	65
LNS6627	27	6006001388	6156151398	0.529	615615130	6151320315	/	0.305	60
LNS6827	27	6008001388	6158151398	0.701	615815130	6151320315	/	0.321	70
LNS6632	32	6006001610	6156151620	0.613	615615130	640146590	6101535270	0.386	64
LNS6832	32	6008001610	6158151620	0.812	615815130	6151465105	6101535270	0.413	74
LNS6637	37	6006001833	6156151843	0.697	615615130	640169090	6101760270	0.436	79
LNS6837	37	6008001833	6158151843	0.924	615815130	6151690105	6101760270	0.464	89
LNS8837	37	8008001833	8158151843	1.224	815815130	8151690105	8101760270	0.616	105
LNS6137	37	60010001833	61510151843	1.150	6151015130	7301690105	6101760270	0.501	95
LNS6642	42	6006002055	6156152065	0.781	615615130	640191090	6101980270	0.485	95
LNS6842	42	6008002055	6158152065	1.035	615815130	6151910105	6101980270	0.514	105
LNS8842	42	8008002055	8158152065	1.372	815815130	8151910105	8101980270	0.682	128
LNS8142	42	80010002055	81510152065	1.78	8151015130	8151910105	8101980270	0.704	130
LNS6142	42	60010002055	61510152065	1.289	6151015130	7301910105	6101980270	0.553	110
LNS6647	47	6006002277	6156152287	0.865	615615130	640213590	6102200270	0.534	135
LNS6847	47	6008002277	6158152287	1.146	615815130	6152135105	6102200270	0.565	140
LNS8847	47	8008002277	8158152287	1.519	815815130	8152135105	8102200270	0.750	150
LNS6147	47	60010002277	61510152287	1.428	6151015130	7302135105	6102200270	0.670	155
LNS8147	47	80010002277	81510152287	1.892	8151015130	8152135105	8102200270	0.772	145
