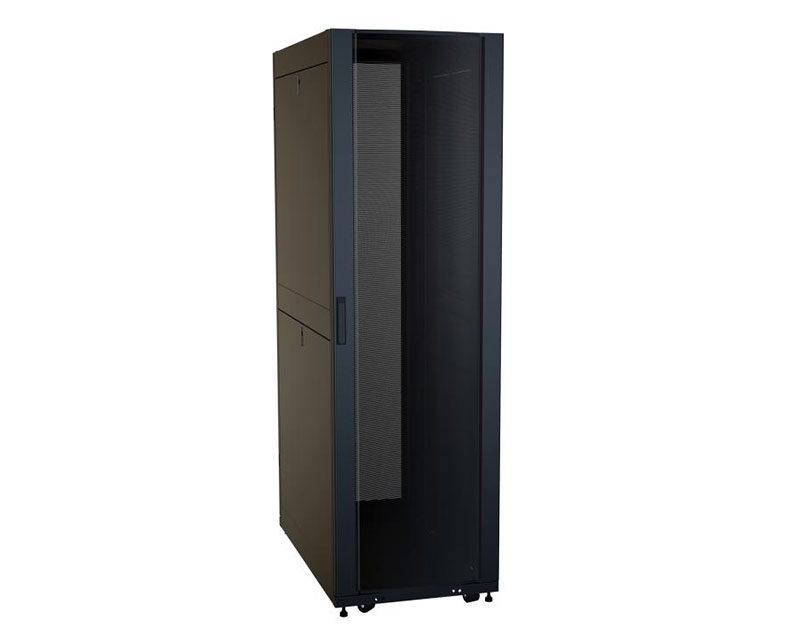

Server Rack Enclosure, 42U, Black,1992H x 600W x 1070D

Model:

LNH

Server Rack Enclosure, 42U, Black,1992H x 600W x 1070D

4-post server rack, constructed from Cold Rolled Steel with a black powder coat.
Highly adaptable for various server sizes, providing flexibility to handle full-size servers.
Offers adjustable depth for versatile server and network equipment accommodation
Included casters, two with brakes, offer the ease of mobility for this network rack.
This 42U data rack promotes efficient airflow, essential for maintaining optimal performance of server and network hardware.
The rack’s design, with square hole cage nut mounting, simplifies installation and maintenance tasks in IT and networking areas.
ETL, CE, ROHS, 3C certificates approved.

Safety class IP 20 rating
Curved perforated front door(75%) with swing handle lock

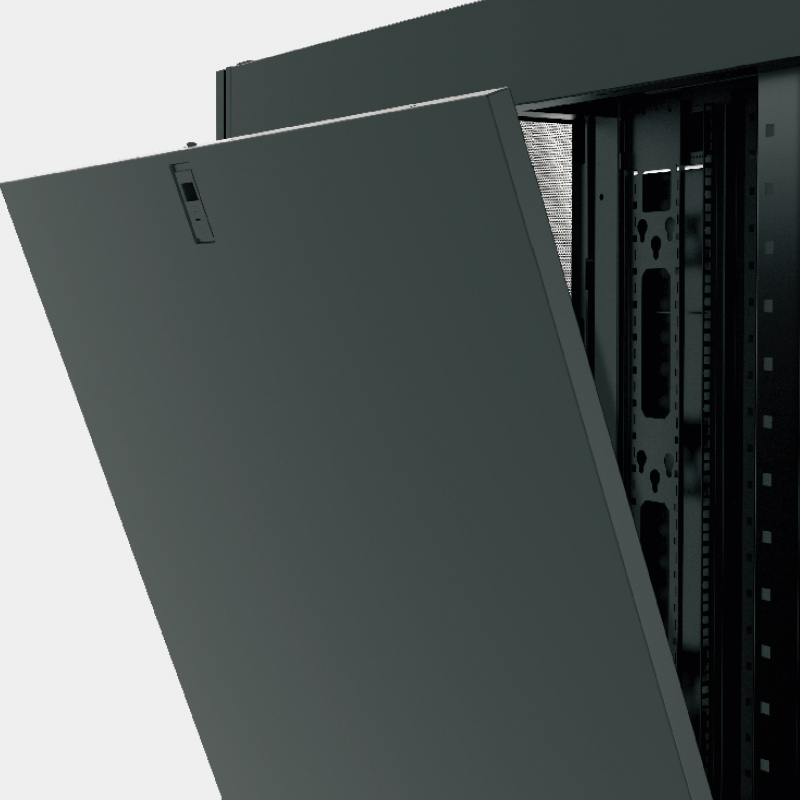

Quick release lockable Side panels
Double flat perforated split rear doors with swing hand lock
120° opening door angle, front-and double rear door
High frame rigidity due to special plate-curving-technique
1500 kg loading capacity

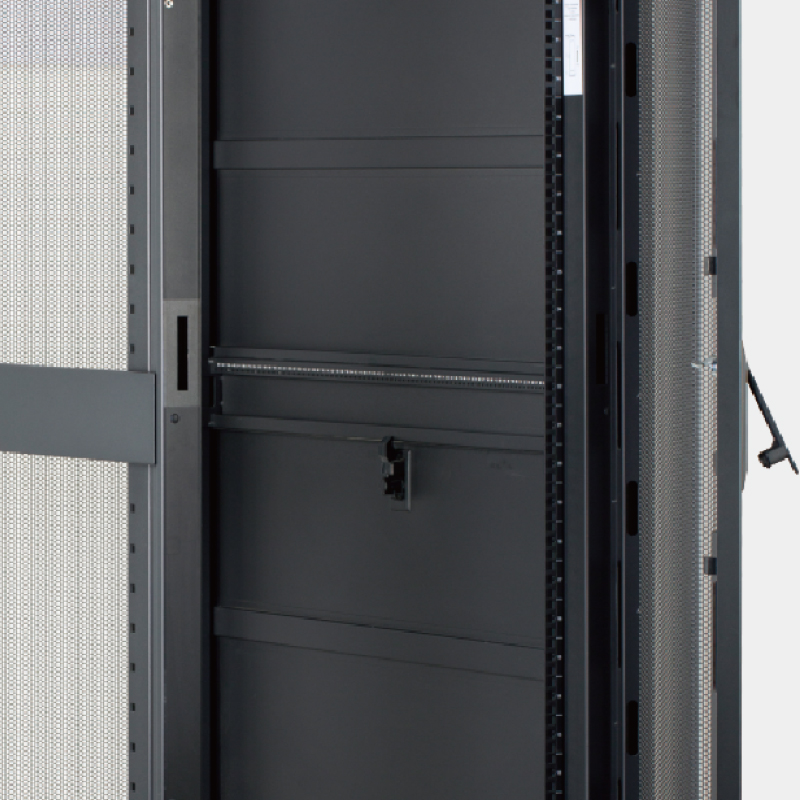

19″ profile rails mounted in the front and the back of the cabinet
19″ profile rails adjustable in depth

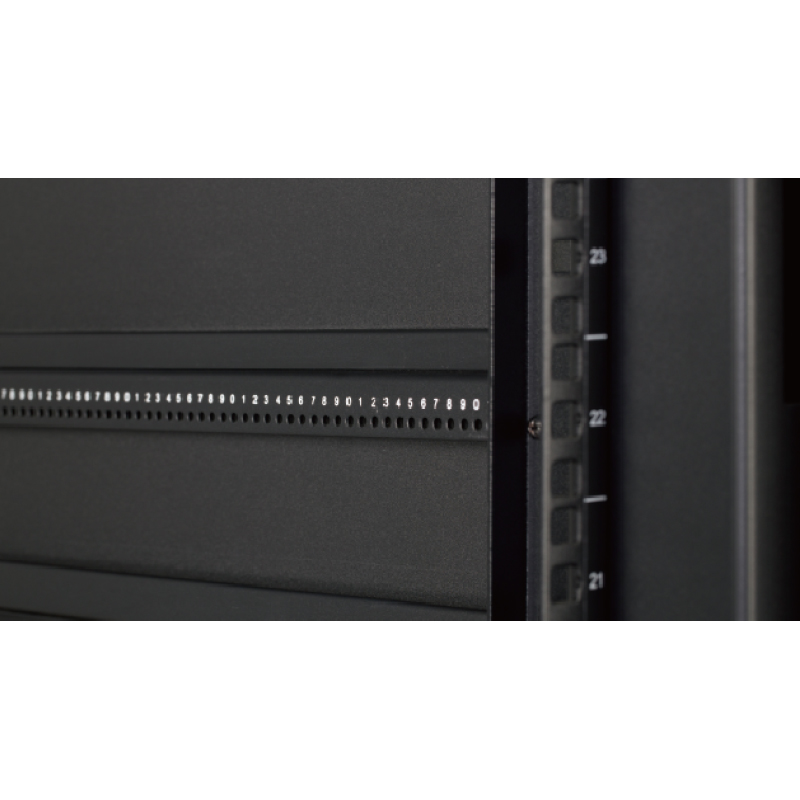

19″ profile rails with unit-marking
800mm wide LNH rack include 2*vertical cable manager.
Level feet & 50 sets cage nuts are included
Color by RAL7035 light grey, RAL9005/9004 black

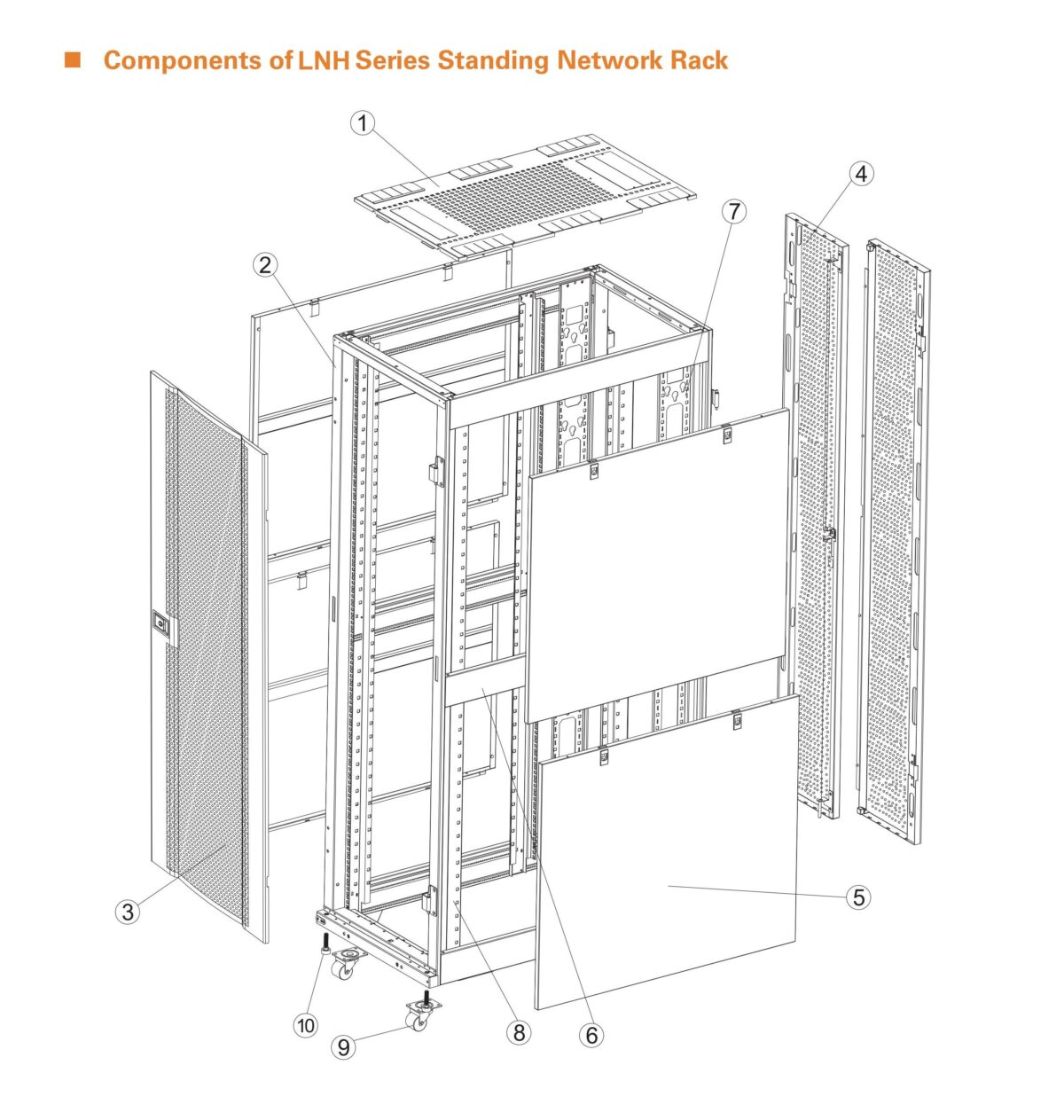

S/N	Name	Quantity(24U)	Quantity(42/47U)
1	Top cover	1	1
2	Door frame	1	1
3	Front vented door with single lock	2	2
4	Split rear door	2	2
5	Side panel	2	4
6	Horizontal beam	4	6
7	Cable management rail	2	2
8	Vertical rail	4	4
9	2″ heavy duty caster(without brake)	4	4
10	Levelling feet	4	4
Note: Bottom plate is optional accessories

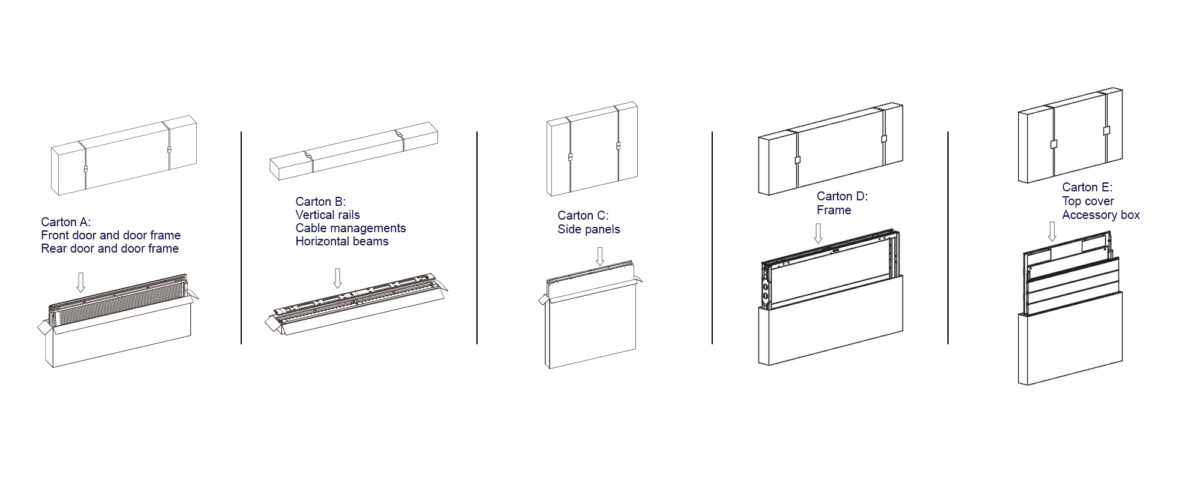

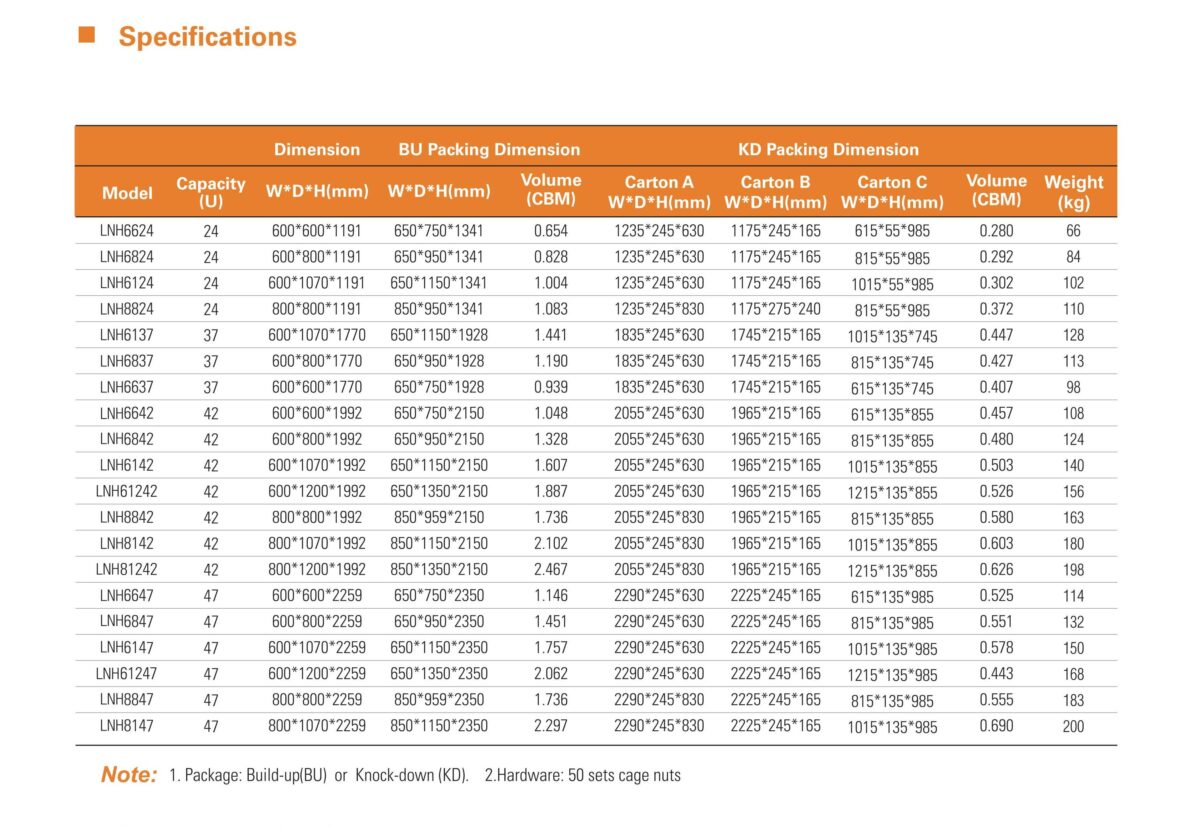

Model	Capacity (U)	Dimension WDH(mm)	BU Packing Dimension WDH(mm)	BU Volume (CBM)	Carton A WDH(mm)	Carton B WDH(mm)	Carton C WDH(mm)	KD Volume (CBM)	Weight (kg)
LNH6624	24	6006001191	6507501341	0.654	1235245630	1175245165	61555985	0.280	66
LNH6824	24	6008001191	6509501341	0.828	1235245630	1175245165	81555985	0.292	84
LNH6124	24	60010701191	65011501341	1.004	1235245630	1175245165	101555985	0.302	102
LNH8824	24	8008001191	8509501341	1.083	1235245830	1175275240	81555985	0.372	110
LNH6137	37	60010701770	65011501928	1.441	1835245630	1745215165	1015135745	0.447	128
LNH6837	37	6008001770	6509501928	1.190	1835245630	1745215165	815135745	0.427	113
LNH6637	37	6006001770	6507501928	0.939	1835245630	1745215165	615135745	0.407	98
LNH6642	42	6006001992	6507502150	1.048	2055245630	1965215165	615135855	0.457	108
LNH6842	42	6008001992	6509502150	1.328	2055245630	1965215165	815135855	0.480	124
LNH6142	42	60010701992	65011502150	1.607	2055245630	1965215165	1015135855	0.503	140
LNH61242	42	60012001992	65013502150	1.887	2055245630	1965215165	1215135855	0.526	156
LNH8842	42	8008001992	8509502150	1.736	2055245830	1965215165	815135855	0.580	163
LNH81242	42	80012001992	85013502150	2.467	2055245830	1965215165	1215135855	0.626	198
LNH6647	47	6006002259	6507502350	1.146	2290245630	2225245165	615135985	0.525	114
LNH6847	47	6008002259	6509502350	1.451	2290245630	2225245165	815135985	0.551	132
LNH6147	47	60010702259	65011502350	1.757	2290245630	2225245165	1015135985	0.578	150
LNH61247	47	60012002259	65013502350	2.062	2290245630	2225245165	1215135985	0.443	168
LNH8847	47	8008002259	8509502350	1.898	2290245830	2225245165	815135985	0.555	183
LNH8147	47	80010702259	85011502350	2.297	2290245830	2225245165	1015135985	0.690	200
