In the world of professional IT infrastructure, power distribution is rarely a topic that gets the attention it deserves—until something goes wrong. A sudden overload, a loose connection, or an under-specified cable can bring an entire rack offline in seconds. For organizations operating within French electrical standards, selecting the right France basic PDU is one of the most important decisions an IT manager or procurement specialist will make.

The France basic PDU is a purpose-built solution designed to deliver stable, reliable, and safe power distribution across a wide range of professional applications—from high-density data centers and telecommunications rooms to security systems, audio/video rigs, and sound reinforcement setups. Unlike generic power strips, the France basic PDU is engineered to meet the specific mechanical and electrical demands of 19-inch rack environments, combining premium materials, flexible installation options, and comprehensive safety certifications into a single, cohesive product.

In this comprehensive guide, we will walk through every key feature of the France basic PDU, explaining what each specification means in practice and how it translates into real-world performance inside a professional rack enclosure.

1. What is the France basic PDU and Who is It For?

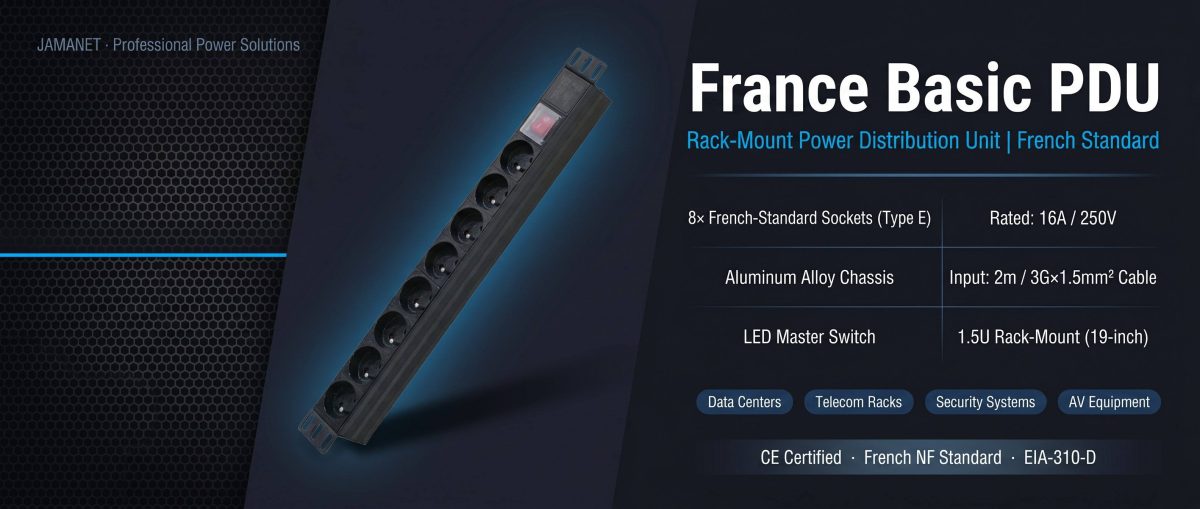

At its core, the France basic PDU is a rack-mounted power distribution unit built around the French electrical socket standard. It is specifically designed for high-density IT environments where space is limited, power loads are substantial, and uptime is non-negotiable.

According to the official product overview, the France basic PDU is used across the following professional sectors:

• Networking: The France basic PDUpowers switches, routers, and access points in enterprise LAN/WAN environments where continuous availability is critical.
• Telecommunications: Telecom racks demand consistent voltage delivery and robust grounding—both of which the France basic PDUprovides through its precision-engineered French-standard sockets and certified cable assembly.
• Security Systems: Surveillance servers, NVRs, and access control panels require clean, uninterrupted power. The France basic PDUdelivers this through its stable 16A-250V design.
• Audio/Video and Sound Reinforcement: Sensitive AV equipment is highly susceptible to power noise and surges. Certain models of the France basic PDUinclude built-in surge protection to shield these devices from transient voltage spikes.

By covering such a broad application spectrum, the France basic PDU is a genuinely versatile solution that goes far beyond a simple rack power strip.

2. Premium Aluminum Alloy Construction: The Structural Backbone of the France basic PDU

The most foundational material specification of the France basic PDU is its aluminum alloy body. While this may appear to be a minor detail in a datasheet, the choice of aluminum over plastic or thin-gauge steel has profound implications for the long-term performance and safety of the unit.

Why the aluminum body sets the France basic PDU apart:

• Superior Thermal Conductivity: Modern server racks generate substantial heat during operation. The aluminum chassis of the France basic PDUacts as a passive heat exchanger, absorbing warmth from the internal busbars and dissipating it across the body surface. This prevents localized hot spots that could degrade internal contacts or insulation over time.
• Long-Term Structural Integrity: Plastic housings can warp, crack, or deform under sustained thermal or mechanical stress. The aluminum enclosure of the France basic PDUmaintains its precise shape and socket alignment throughout years of continuous use, ensuring that every French plug seats securely and makes full electrical contact.
• Electromagnetic Interference Shielding: In mixed networking and audio/video environments, EMI is a real concern. The conductive aluminum body of the France basic PDUprovides passive shielding, reducing the risk that the PDU’s internal conductors radiate interference into adjacent signal cables.
• Color Versatility: The France basic PDUis available in both professional black and classic silver-white finishes, allowing it to integrate cleanly with the visual identity of any rack—whether it is a collocated hosting environment with strict aesthetic standards or an in-house server room.

3. Electrical Performance: Understanding the 16A-250V Rating of the France basic PDU

Every model in the France basic PDU lineup is rated for 16A at 250V. These numbers define the operational boundary of the unit and must be understood clearly before deployment.

Breaking down the electrical specification of the France basic PDU:

• 16 Amperes Total Capacity: This is the maximum continuous current the France basic PDUcan safely carry through its internal conductors. When planning a rack build, engineers must total the idle and peak current draw of all connected devices and ensure the combined load stays comfortably below 16A—typically targeting 80% utilization (12.8A) to allow for startup surges and future expansion.
• 250 Volts Rated Voltage: The France basic PDUis aligned with the European standard of 230V nominal, with 250V as the rated safe ceiling. This provides headroom for the slight voltage variations common in commercial and industrial buildings, ensuring the unit never operates outside its safe design parameters.
• Input Cable — 2m / 3G x 1.5mm²: All France basic PDUmodels ship with a 2-meter input cable assembled from three 1.5mm² conductors (Live, Neutral, and Ground). The 1.5mm² cross-section is correctly rated for continuous 16A service, and the included grounding conductor ensures that the metal body of the France basic PDU itself is safely bonded to the building earth, protecting both equipment and personnel.

4. Choosing the Right France basic PDU: A Detailed Look at All Three Models

The France basic PDU product line offers three distinct models, each tailored to a specific rack density and protection requirement. Selecting the correct model is straightforward once you understand what differentiates them.

Model FRA-S6-SS: Compact Surge-Protected Unit

• Outputs: 6 x French-standard sockets
• Input: French plug / 2m / 3G x 1.5mm²
• Protection Module: Surge Protection (浪涌保护)
• Control Module: LED Normal Switch (LED常规开关)
• Rating: 16A-250V

The FRA-S6-SS is the entry-level France basic PDU for smaller deployments. Six outlets make it ideal for edge racks, branch office cabinets, or equipment enclosures where power density is moderate. The integrated surge protection module actively clamps transient voltage spikes before they reach connected devices—a critical feature for audio/video gear and security appliances that are particularly vulnerable to power disturbances. The LED switch provides instant visual confirmation of power status, useful during maintenance when identifying which PDU segment is live.

Model FRA-S8-S: Mid-Density Horizontal 1.5U Unit

• Outputs: 8 x French-standard sockets
• Input: French plug / 2m / 3G x 1.5mm²
• Protection Module: None
• Control Module: LED Normal Switch (LED常规开关)
• Rating: 16A-250V | Form Factor: 1.5U Horizontal

The FRA-S8-S is the most widely deployed France basic PDU configuration for standard server rooms. At 1.5U, it occupies minimal horizontal rack space while delivering eight fully accessible French-standard outlets. The LED switch allows precise power control without requiring physical access to the plugs—valuable in densely populated cabinets where reaching individual connections is difficult. This model is particularly well-suited to networking equipment rooms where a mix of switches, patch panels, and media converters need clean, managed power.

Model FRA-S12-2P: High-Density Vertical 0U Unit with Circuit Breaker

• Outputs: 12 x French-standard sockets
• Input: French plug / 2m / 3G x 1.5mm²
• Protection Module: 2P Circuit Breaker (2P断路器)
• Control Module: None
• Rating: 16A-250V | Mounting: Vertical 0U

The FRA-S12-2P is the high-density flagship of the France basic PDU range. Twelve outlets mounted vertically in the 0U space at the rear of the cabinet means that not a single horizontal rack unit is sacrificed for power distribution—every U remains available for compute, storage, or networking hardware. The integrated 2P circuit breaker provides overload protection at the PDU level: if the total load exceeds the rated threshold, the breaker trips and isolates the France basic PDU from the supply, preventing cable overheating and protecting downstream equipment from the effects of a sustained overload. This model is the natural choice for core data center racks where maximum device density is the primary design objective.

5. Five International Safety Certifications: Why They Matter for Your France basic PDU

The France basic PDU carries five internationally recognized safety certifications: CE, RoHS, cULus, GS, and SAA. Together, they represent one of the most comprehensive certification portfolios in the PDU industry and provide buyers with confidence that the product has been independently verified to perform safely under real operating conditions.

What each certification means for your France basic PDU:

• CE (Conformité Européenne): The CE mark is mandatory for electrical products sold within the European Economic Area. It confirms that the France basic PDUcomplies with the EU Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC) Directive, meeting the region’s foundational safety and performance requirements.
• RoHS (Restriction of Hazardous Substances): RoHS certification confirms that the France basic PDUis manufactured without restricted hazardous substances including lead, mercury, cadmium, hexavalent chromium, and certain flame retardants. This is a legal requirement for products sold in the EU and is increasingly demanded by environmentally conscious procurement policies worldwide.
• cULus (Underwriters Laboratories — Canada/US): The cULus mark demonstrates that the France basic PDUhas been tested and certified to North American safety standards by UL, one of the world’s most respected independent safety organizations. This certification is essential for any deployment that spans both European and North American operations, ensuring the same France basic PDU hardware meets regulatory requirements on both sides of the Atlantic.
• GS (Geprüfte Sicherheit — Tested Safety): GS is a voluntary German safety certification that exceeds CE baseline requirements. Unlike a self-declared CE mark, GS certification requires physical product testing by an accredited laboratory plus periodic factory audits to ensure ongoing manufacturing consistency. The presence of GS on the France basic PDUis one of the strongest signals of genuine product quality available in the European market.
• SAA (Standards Australia): The SAA mark confirms that the France basic PDUmeets Australian electrical safety standards. While not a requirement for French-market deployments, SAA certification demonstrates that the product has been validated by yet another independent national testing authority—reinforcing confidence in the overall quality management process behind the France basic PDU.

6. Tailor-Made Flexibility: Customizing the France basic PDU for Your Exact Project Needs

One of the defining advantages of the France basic PDU is that it is explicitly designed as a tailor-made product. The standard three-model lineup covers the most common deployment scenarios, but the underlying manufacturing platform is flexible enough to accommodate a wide range of custom requirements without long lead times or minimum order complications.

Customization dimensions available for the France basic PDU:

• Socket Count: Beyond the standard 6, 8, and 12-outlet configurations, the France basic PDUcan be manufactured with virtually any socket count to match the exact power density of a specific rack build. Common custom counts include 10, 16, 20, and 24 outlets.
• Input Cable Length and Rating: The default 2-meter / 3G x 1.5mm² cable suits most rack layouts, but projects with unusual power entry points can specify custom lengths. Cable gauge can also be upgraded to 14AWG for applications requiring maximum current headroom.
• Protection and Control Modules: Any France basic PDUmodel can be configured with surge protection, 1P or 2P circuit breakers, overload protection relays, or metering modules that display real-time current draw—enabling facilities teams to monitor load balance across the rack without external instrumentation.
• Mounting Hardware: Standard France basic PDUunits include two metal mounting brackets for 19-inch horizontal installation. Custom bracket kits are available for 0U vertical mounting on both standard and non-standard cabinet side rails, and the bracket spacing can be adjusted to match the socket count of any custom-length unit.
• Logo and Branding: The flat aluminum surface of the France basic PDUprovides an ideal area for laser engraving or screen printing. System integrators and white-label resellers can specify custom logos, product codes, or QR codes to be applied during the manufacturing process.

Conclusion: The France basic PDU as a Foundation for Professional Power Infrastructure

The France basic PDU is far more than a passive accessory in a server rack. It is a precision-engineered power distribution platform that combines a premium aluminum body, a comprehensive certification portfolio, flexible installation geometries, and a tailor-made manufacturing capability into a product that is ready for the most demanding professional environments.

From the compact, surge-protected FRA-S6-SS through to the high-density, circuit-breaker-equipped FRA-S12-2P, every model in the France basic PDU lineup has been designed with a clear operational use case in mind. And with full customization available across socket count, cable specification, protection modules, and mounting hardware, the France basic PDU can be precisely matched to the requirements of any project—no compromises required.

If you are planning a new rack deployment or refreshing an existing power distribution setup, the France basic PDU deserves a place at the top of your shortlist. Contact our technical team today to discuss your project requirements and discover how a custom-configured France basic PDU can deliver the reliability and performance your infrastructure depends on.
